THINKY CORPORATION

THINKY was founded in 1971 as a company manufacturing digital measurement instruments. With the need of an equipment which gives a quality mixing product Thinky Planetary Centrifugal Mixer was introduced to the world. It became world-class manufacturers for planetary propeller-less (Blade less) centrifugal mixers from Japan. The Centrifugal Mixer; mixes, disperses materials uniformly and de-aerates at the same time. THINKY mixers can mix materials with viscosity as high as 1 million micro poise in just a few minutes while de-aerating at the same time. It is the first company to develop stirring bladeless planetary centrifugal mixers. THINKY has vast range of containers and adapters and a strong track record in delivering them to our customers, to satisfy the customers need and specific properties like low-temperature insulation or heat resistance. Our efforts to achieve the level our customer's desire and to bring out the optimum performance of our unit, took us through several thousand prototypes to create a range of over 300 types. Containers and adapters are vital elements to expand the performance of your product. Thinky support wide ranges of application like Nano Material Mixings, Adhesives/Sealants, Batteries/Electrode Mixing, Conductive Materials, Ceramics, Glasses, LED manufacturer, Inks manufacturer, Oil/Powder, Pharmaceuticals, Cosmetics, Dental Material and Oilments etc.

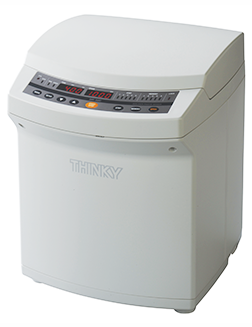

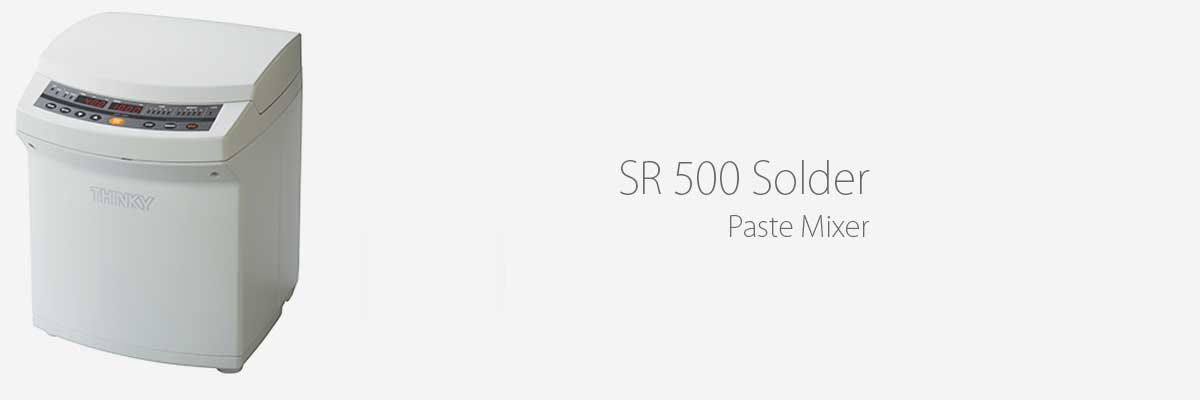

SR500: SOLDER PASTE MIXER

Special purpose machine that can optimize temperature and viscosity preparations and dispersion and de-aeration of solder paste at the same time.

SR500:

  • Centrifugal Rotation and Revolution technology
  • Time setting range:0 seconds to 30 minutes in 1s increment.
  • Max. speed up to 1200 RPM
  • Max. Mixing capacity up to 500gms
  • Homogeneous mixing of high-viscous solder paste in a small amount of time
  • Memory and step-operation functions for controlling and executing operating conditions
  • Dispersing without shearing
  • High reproducibility
  • Brings refrigerated temperature in to atmospheric temperature in minutes
  • Need not clean the apparatus, as there will not be any spillages
  • Solder paste weight balanced with counter weight dial gauge
  • No material loss
  • Easy operation and memory reproducible functions
  • Standard 500gms solder paste can be loaded into the machine directly
  • Zero Maintenance and calibration free machine
  • Power supply 230V, Single phase, 50-60Hz

NON VACUUM PLANETARY CENTRIFUGAL MIXER

The standard model of the non-vacuum THINKY MIXER series. Provides simultaneous processing of mixing, dispersing and de-areation of high-viscosity materials with a force of 400G.

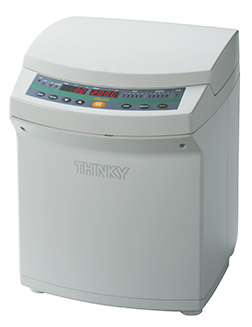

ARE-310:

  • Centrifugal Rotation and Revolution technology
  • Time setting range:0 seconds to 30 minutes in 1s increment.
  • Max. speed during Mixing up to 2000 RPM
  • Max. Speed during De-foaming up to 2200 RPM
  • Max. Mixing capacity up to 250gms
  • The 2 modes of operation like mixing and de-aeration: to achieve dispersion and de-aeration of high-viscosity materials in a small amount of time
  • Cold-insulated, heat-resistant adaptor enables support of various material characteristics
  • Wide variety of adaptors for using various containers
  • Memory and step-operation functions for controlling and executing operating conditions
  • Unique air-cooling system
  • Safety parameters: Lid lock, Vibration and Rotation sensors
  • 120V Power supply, Single phase, 50-60Hz

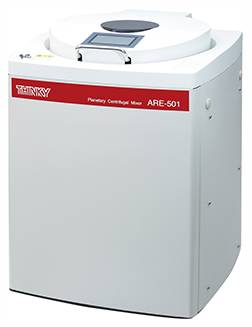

ARE-501:

  • Improving the mixing performance by increasing revolution speed and optimized rotation/revolution ratio
  • Time setting range:0 seconds to 30 minutes in 1s increment.
  • Max. speed during Mixing up to 1500 RPM
  • Max. Speed during De-foaming up to 2000 RPM
  • Max. Mixing capacity up to 1100 g
  • The 2 modes of operation like mixing and de-aeration: to achieve dispersion and de-aeration of high-viscosity materials in a small amount of time
  • Communication Function: Data collection function (Traceability function)
  • Operation start and stop, recipe editing andsaving, using an external terminal
  • Programming Function: 20 memories with 10 steps, recipe name can be edit
  • Cold-insulated, heat-resistant adaptor enables support of various material characteristics
  • Memory and step-operation functions for controlling and executing operating conditions
  • Ease of the touch operation
  • Unique air-cooling system
  • PC connectivity enables traceability
  • Adapters for various containers are available
  • Safety parameters: Lid lock, Vibration and Rotation sensors
  • AC100V Power supply, Single phase, 50-60Hz

VACUUM PLANETARY CENTRIFUGAL MIXER

Combining vacuum pressure reduction function with rotation and revolution mixing enables efficient elimination of submicron-level air bubbles. With rotation and revolution movement under vacuum pressure reduction, de-areation of high-viscosity materials; which was considered difficult, can now be performed with excellent quality.

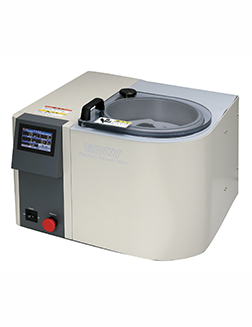

ARV-310P:

  • Standard vacuum mixer enabling uniform mixing and elimination of submicron-level air bubbles
  • The ARV-310P mixes in the vacuum chamber and includes the vacuum pump
  • Mixing capacity up to 310 g
  • Time setting range:0 seconds to 30 minutes in 1s increment.
  • Max. Speed up to 2000 RPM
  • Stabilizes and improves quality
  • De-aeration of high-viscosity materials difficult to be processed by a centrifugal separator
  • Reduced processing time and improved de-aeration performance compared to the atmospheric type mixer
  • Centrifugal force of revolution prevents overflow of material during operation
  • Programming Function: Register up to 20 recipes, each specified by an appropriate name.
  • Communication Function: Data collection function (Traceability function)
  • Operation start and stop, recipe editing and saving, using an external terminal
  • Easy identification of cause of error by clear display of error status with corresponding explanation
  • Real time display and check of recipe progress and operation status
  • Safety parameters: Lid lock, Vibration and Rotation sensors
  • Easy identification of cause of error by clear display of error status with corresponding explanation
  • 100V Power supply, Single phase, 50-60Hz

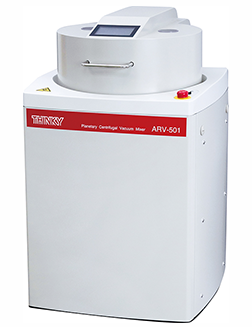

ARV-501:

  • Standard vacuum mixer enabling uniform mixing and elimination of submicron-level air bubbles
  • The ARV-501 mixes in the vacuum chamber and includes the vacuum pump
  • Mixing capacity up to 700 g
  • Time setting range:0 seconds to 30 minutes in 1s increment.
  • Max. vacuum pressure up to 0.67Kpa
  • Max. Speed up to 2000 RPM
  • Newly added defoam mode can be used with or without vacuum
  • Stabilizes and improves quality
  • De-aeration of high-viscosity materials difficult to be processed by a centrifugal separator
  • Reduced processing time and improved de-aeration performance compared to the atmospheric type mixer
  • Centrifugal force of revolution prevents overflow of material during operation
  • Programming Function: Register up to 20 recipes, each specified by an appropriate name.
  • Communication Function: Data collection function (Traceability function)
  • Operation start and stop, recipe editing and saving, using an external terminal
  • Easy identification of cause of error by clear display of error status with corresponding explanation
  • Real time display and check of recipe progress and operation status
  • Safety parameters: Lid lock, Vibration and Rotation sensors
  • PC connectivity enables traceability
  • Ease of the touch operation
  • Dedicated stand with the built in vacuum pump enables to save the footprint
  • Adapters for various containers are available
  • AC 200 to 240V Power supply, Single phase, 50-60Hz
