FUJI Corporation

Since its establishment in 1959, Fuji Corporation has used its guiding precept and the company motto to help break through many barriers and continue journey, maintaining the leadership position in Surface Mount Technology. With its "World-First" and "Industry-First" technologies, Fuji Corporation develops and manufactures SMD placement machines with unparalleled reputation, quality, durability and reliability. Fuji Corporation has become the world's largest supplier of SMT placement equipment. This foresight and innovation have kept Fuji on the leading edge of SMT development and achieving with its solutions:

  • Lowest Cost of Production.
  • Highest Life Span of the machines.
  • Sustained Accuracy and repeatability over period of time.

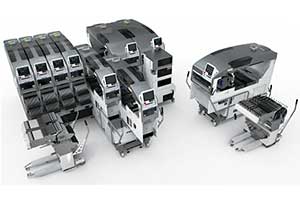

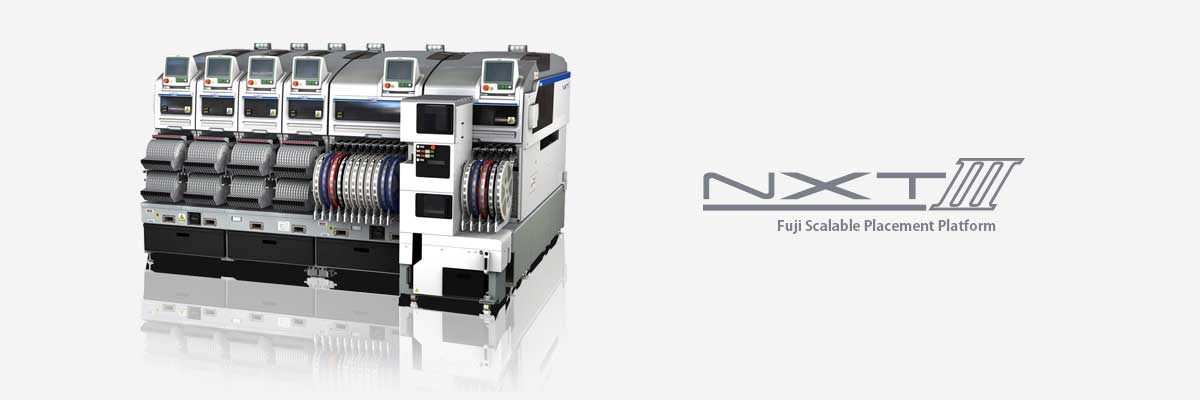

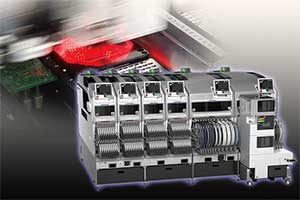

NXT Introduced real modularity to the SMT world. NXTIII is the yardstick of quality when it comes to placement accuracy for both chips and fine pitch components. NXTIII comes equipped with industry first features like vision processing for part recognition, and has continued to be a leader in cutting-edge technology.It offers world's best productivity per floor area. It is a highly flexible, expandable and configurable machine for every kind of product.

Configure or Enhance Capacity with Ease

Exchange or swap Modules, Heads, and Supply Units freely

Automatic Calibration

Newly Exchanged Head is calibrated automatically in the machine.

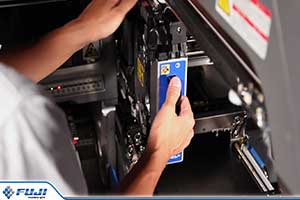

Exchangeable Head

Easily exchange Head without any tools. Light weight and compact Headresults in high speed and high accuracy.

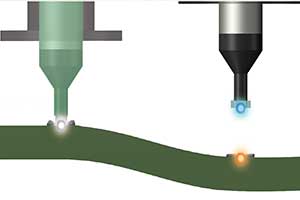

Low Impact Placement

Prevents excessive downward push using IPS to determineamount of panel warpage. Fuji's nozzle prevents collapse of solder and damages to parts.

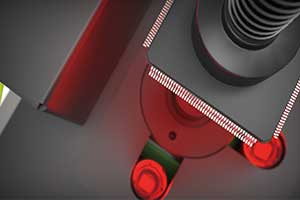

Intelligent Parts Sensor (IPS)

Checks tombstoned parts, missing parts, upside-down parts, height, nozzle pick & nozzle place check.

3D Coplanarity Check

Checks for warped terminals or leads on parts such as connectors and IC chips, missing bumps on BGA and CSP.

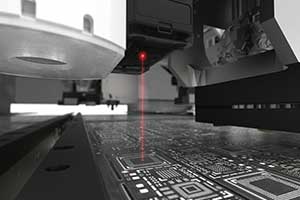

Panel Warpage Check

Automatically measured by a Laser Sensor before placement.

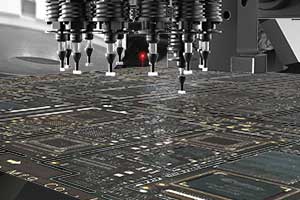

Most Accurate & Complicate Placementsat High Speed

Extreme density part placement of 0201 (008004") package.

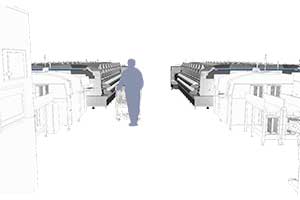

Single-Side Operation

Travel short distance for part supply and changeover.

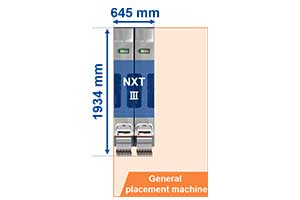

World's Best Productivity Per Floor Area

NXT III is a leading-edge placement solution that is fast and delivers the best productivity out of limited floor space.


This is an all-in-on machine with scalability and the ultimate level of versatility necessary for increasing productivity for high-mix production.It features functions for performing operation smoothly in a short time for the work that comes with introducing new production and changing the product models to produce.The machine flexibly supports various production for users in a variety of sectors including EMS, automotive industry, and more.

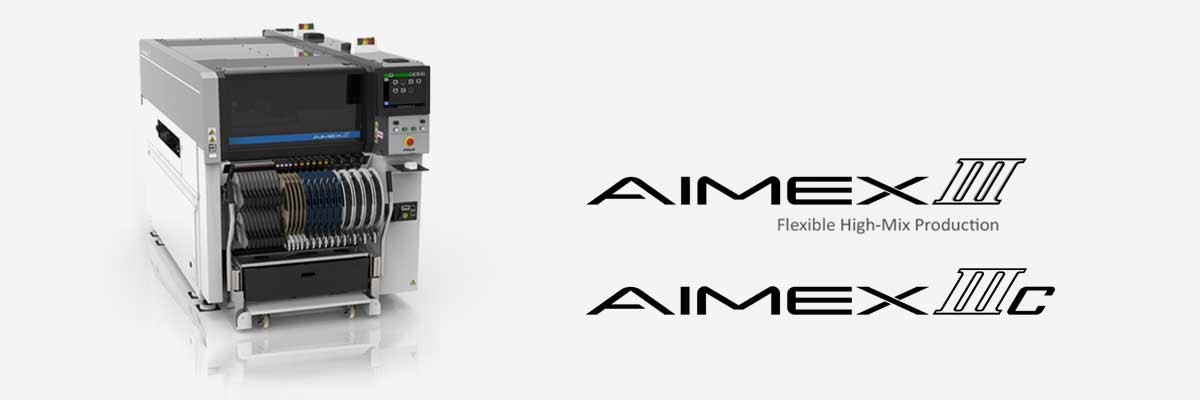

AIMEXIII: Large Panel Production

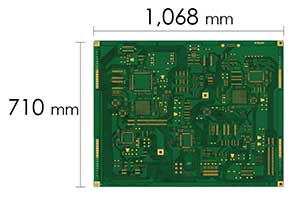

Supports panel size up to 1,068 x 710 mm. (1,500 mm width can be supported as an option)

AIMEXIIIC: Compact Design with a Reduced Length

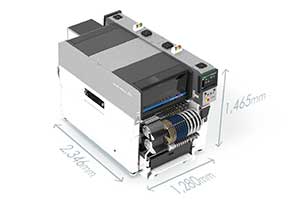

Makes your high-mix production compact with AIMEXIIIC.Machine size: 1,280 (L) x 2,346 (W) x 1,465 (H) mm

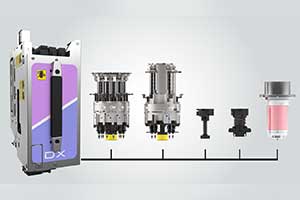

The All-in-One Placing Head

DX head with dedicated tools for small chips to large odd-form parts&glue dispensing. One Head for all kinds of need.

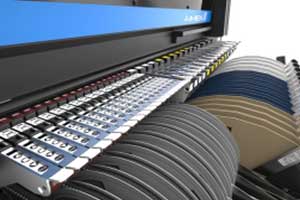

Minimizing the Changeover Count

Save time with batch changeover usingMulti Feeder Unit (MFU) having 130 slots for feeders.

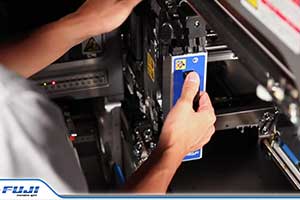

Exchangeable Head

Easily exchange Head without any tools. Light weight and compact Headresults in high speed and high accuracy.

Ramping Up Production Smoothly

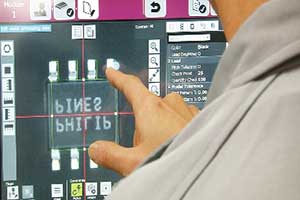

Automatic data creation and on-machine editing using a large touchscreen panel prompts quick responses to sudden changes in parts and programs.

Low Impact Placement

Prevents excessive downward push using IPS to determineamount of panel warpage. Fuji's nozzle prevents collapse of solder and damages to parts.

Intelligent Parts Sensor (IPS)

Checks tombstoned parts, missing parts, upside-down parts, height, nozzle pick & nozzle place check.

3D Coplanarity Check

Checks for warped terminals or leads on parts such as connectors and IC chips, missing bumps on BGA and CSP.

Panel Warpage Check

Automatically measure warpagewith a Laser Sensor before placement.

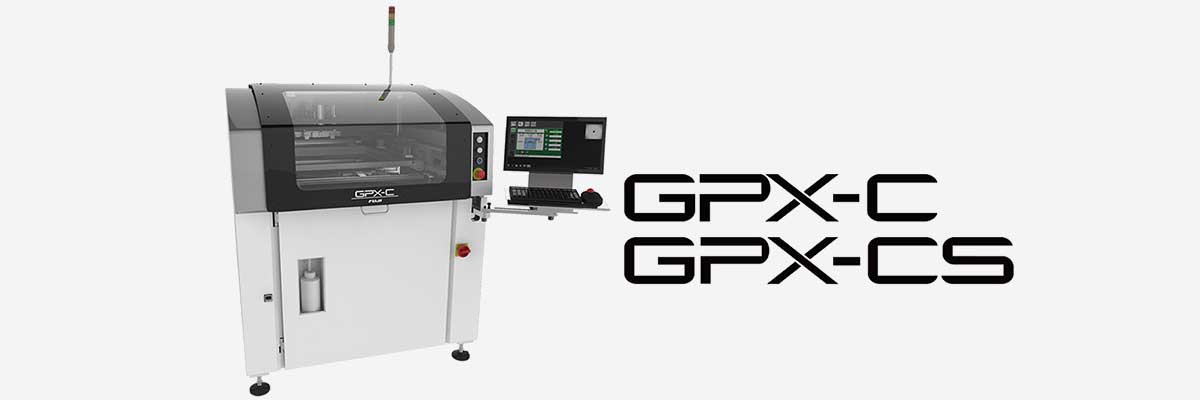

GPX-C series machines provide a complete printing solution that combines superb cost performance with excellent printing accuracy, speed, and usability.

GPX-C: Supports Large Panel Production

The GPX-C supports large panels and provide high printing quality and support a wide variety of production types. A High-performance Screen Printer

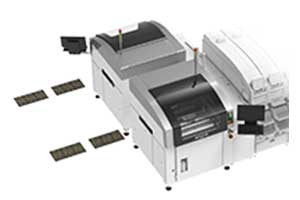

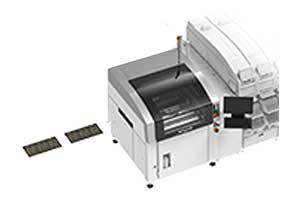

GPX-CS: Supports Dual Lanes in a Compact Body

GPX-CS is compact model that maintains the basic features of GPX-C, and is suitable for dual lane production in smaller space.

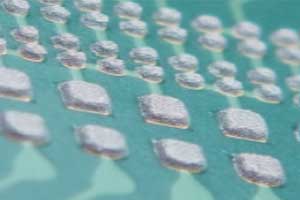

High accuracy printing for large panels

Consistent highly rigid machine design from the base to printing section enables high accuracy printing even for large panels, and durability which can maintain printing quality.

Reduces total costs

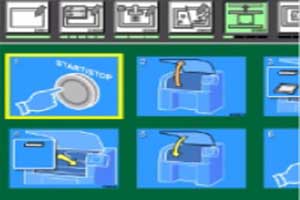

Solder supply and cleaning can be automated and the machine was designed considering work efficiency, which reduces the load on operators and minimizes the work time for changeover and maintenance.Icons and a layout based on procedures are used which provides intuitive operation that operators can easily understand and reduces the training time.

Reliable and efficient changeover

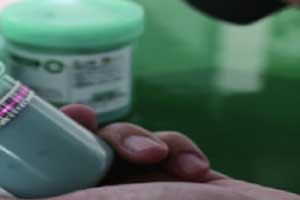

Setting mistakes and printing defects are prevented with the verification function for solder, squeegees, and masks. The cup type auto solder supply (option) enables using a general solder cup and this allows changeover to be performed in a short time without mistakes.

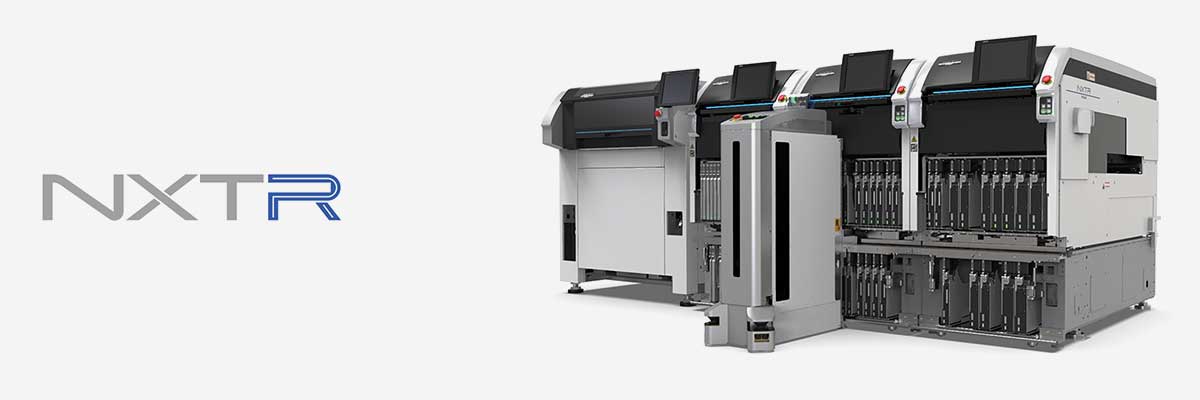

The NXTR is a high-end model placement machine that pursues placement quality and productivity through expanding supported panel sizes and part handling capability and enhancing data processing while continuing the popular Fuji concepts -- compact, high area productivity, single side operation, modular, and simple operation. The newly developed automatic feeder exchange system frees operators from changeover and supply work.Fuji is paving the way to the future of Smart Factories with NXTR.

Development Concept: 3 Zeros

Zero Placement Defects

Stable, high-quality placement can be maintained using newly-developed sensing technology to always maintain correct placement through checking the conditions of electronic parts and panels and then reflecting them to the machine.

Zero Machine Operators

The newly-developed Smart Loader completely automates part supply and changeover for next production according to the production schedule. This prevents short stops from part supply errors and similar issues that are caused by delays and mistakes during supply work.

Zero Machine Stops

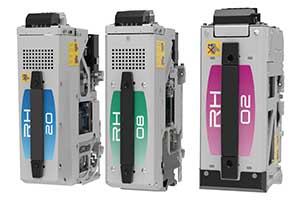

NXTR continues the complete modularity concept employed by the NXT. Heads and other units can be exchanged without tools, making it possible to perform maintenance offline. Predictive maintenance is made possible through self-diagnosis, preventing sudden machine stops from affecting the production plan.

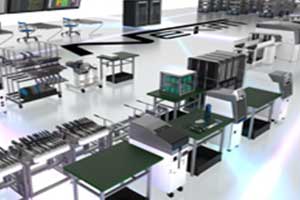

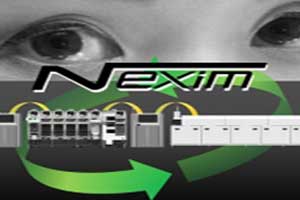

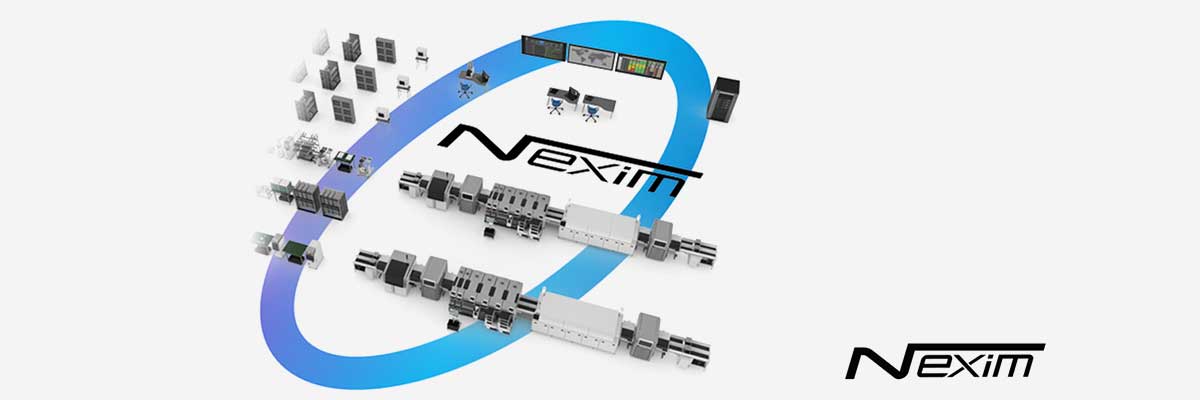

As products become more varied, the shift toward variable-mix variable-volume production is accelerating. Changes to bewildering production schedules and frequent machine changes lead to defective products and missed deadlines, and several other difficult problems are arising such as increasing inventories of materials, parts, and products. Nexim is a production system that integrates the functions of the production cycle (Plan, Do, See) for reliable planning support and changeover support, flexible data management, and maintaining high operation rates and quality.

System-Based Production

Creating program data is very easy with Nexim and production schedules can be created automatically. Nexim issues instructions for checking out parts and performing changeover based on these created schedules, as well as instructions for part resupply based on the machine operating conditions.

Production Equipment Automatically Follows Changes In Work

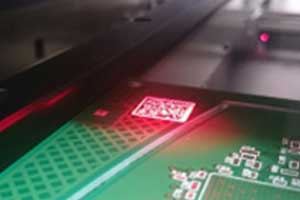

By reading the marks and ID on panels in the production line, instructions to perform changeover are issued to machines from Nexim. The machines can perform changeover automatically right up to the positioning of backup pins.

Predictive Maintenance

By communicating not only with Fuji's printers and placement machines, but also with inspection machines and reflow machines from other suppliers, Nexim can manage integrated information for the entire lines. This allows you to analyse information to perform predictive maintenance.

Learn Fast, Act Quickly

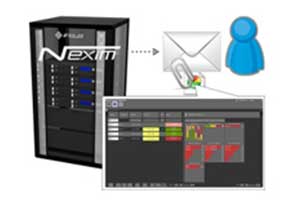

With Nexim,production status can be checked even when not at the production site by using mobile devices. When thresholds for delays in production and productivity are set in Nexim and if these thresholds are exceeded, this information can be sent to an email address to notify the operator about the issue.

Manage Maintenance By Linking The Units With The Host System

Nexim keeps a record of the operation history and inspection results. These types of data are saved to Nexim automatically. Nexim also monitors the line condition, and notify operators maintenance based on the pickup rate and other trend data.
