Tanac Automation Co., Ltd.

Tanac has been known as the originator of the winding machine industry since the company developed and sold its first winding machine. Through decades of continuous accumulation and innovation, Tanac has expanded its business area gradually covering related industries of consumer electronics, automobile and household appliances etc., making it a well-deserved leaders of customized solutions.

Unremitting technical improvement and innovation

Based on accumulated technical experience over the years, all the processes are carried out at the factory in China covering design, processing, assembling, installing and debugging, in order to ensure that we can provide customers with products of highest quality and lowest prices. And we also implement ISO9001 quality management to guarantee the high-quality control of every process of our work.

Market expansion and after-sales service improvement

The perfect and powerful after-sales service is the guarantee of the brand value of Tanac Precision Machine. Tanac Precision Machine after-sales service department has a strong support team composed of well-trained and experienced senior engineers. Every employee devotes himself into providing high-quality and efficient service with attentiveness and enthusiasm for the customers, escorting the customer's production.


Professional supplier of integrated automation system schemes Customized solutions leader


Customized solutions are designed, researched and developed according to the clients' demands to satisfy their personalized and diversified wishes,. including plenty of related categories such as transformer inductance industry, machine manufacturing industry, consumer electronics manufacturing industry, automobile industry, household appliances industry, medical industry, intelligent logistics industry. After decades of accumulation and innovation, Tanac Precision Machine has become a well-deserved leader of customized solutions

Distinct advantages

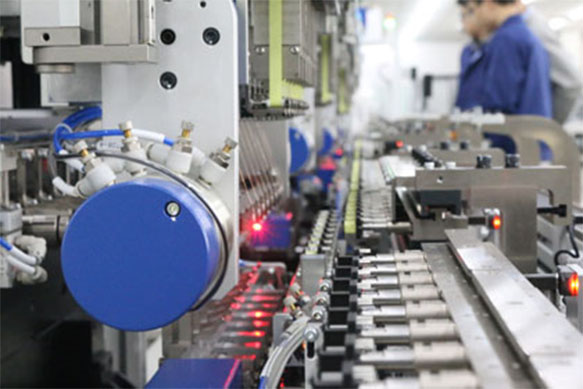

Japanese technology

Tanac Precision Machine long-term commitment to the research and development, design and production of the high-end automation equipment Based on TANAC long-term cultivation technology products are carefully designed to accommodate Chinese industrial base.

Chinese Price

While maintaining high quality, low price become another important competitive factor in Chinese market. Tanac Precision Machine always pays attention to provide high-quality products with competitive prices and will make our unremitting efforts to pursue our goal.

First-class service

The perfect and powerful after-sales service is the guarantee of the brand value of Tanac Precision Machine. Tanac Precision Machine after-sales service department has a strong support team composed of well-trained and experienced senior engineers.

International brand

After years of unremitting efforts and the core technology accumulation, TANAC brand products have obtained high praise by customers all over the world, which firmly consolidated its position of the world brand.

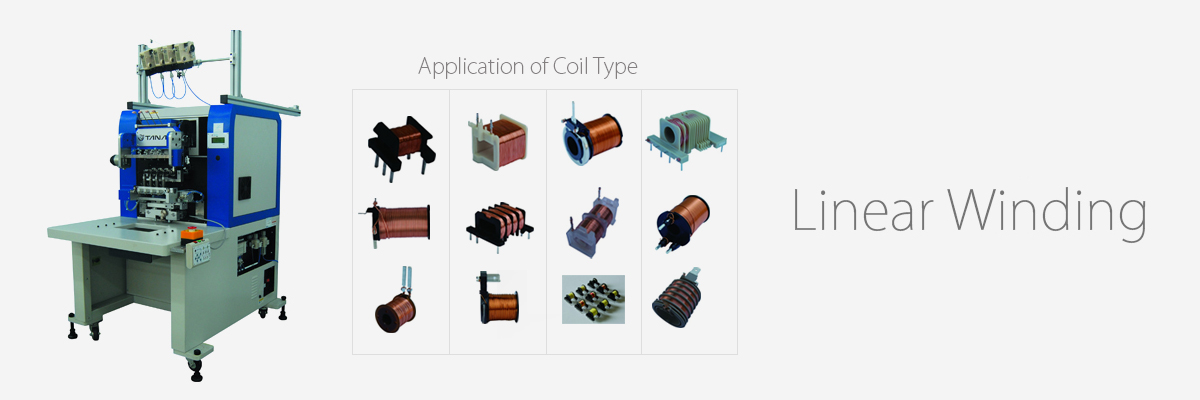

Linear type Winding Machine

MX Series / CX Series

MX / CX series is the standard winding machine of Tanac with high efficiency and precision. This series includes four models and the numbers of the spindles are from 4 to 16. The total pitch of these spindles is 180/360/560/880mm. A large variety of accessories are available.

Machine Features

The rigidity of MX series is better and the moving scope of XYZ axis is larger than the previous one. This series can complete more complicated wound coils with high-speed and high precision, what's more lifetime is prolonged.

The simple design improves the reliability and operability, making the maintenance easier. TANAC original controller connected to the Windows standard interface can handle different requirements of winding process.

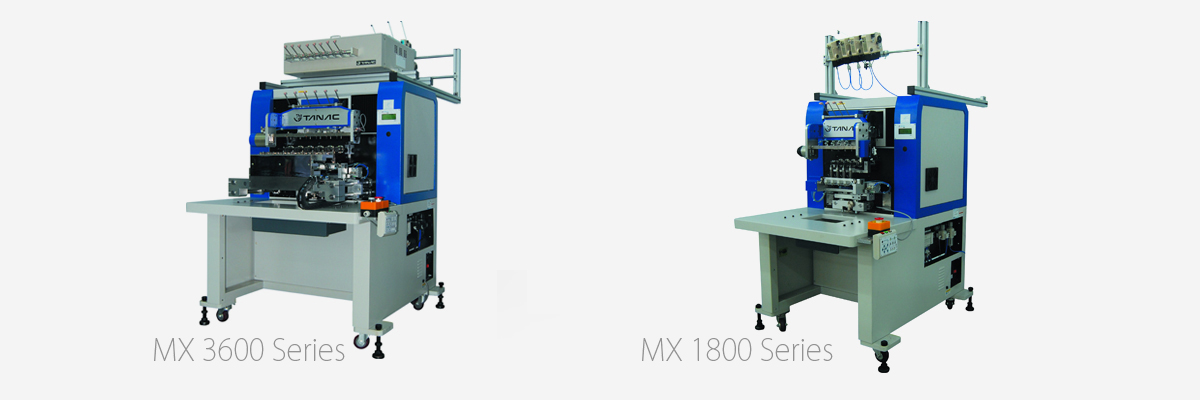

Specifications : MX1800 & MX3600 Series

Type MX1800 MX3600
MX1804 MX1806
MX3604 MX3606 MX3608
Spindle number
- 6
4 6 8
Spindle speed (rpm) 4000 / 10000 / 16000 4000 / 10000 / 16000
Spindle pitch (mm)
45 30
90 60 45
Spindle servo moto power (w) 400 750 (1500*)
Traverse motor power (w) X:200 Y:200 Z:200 X:200 Y:200 Z:200
Spindle diameter (mm)
10 (12*) 10
10 (12*) 10 10
Wire range (mm) 0.02 - 0.32 (>0.32*) 0.02 - 0.32 (>0.32*)
Max. Bobbin diameter (mm)
30 15
55 45 30
Traverse moving range (mm) X:110 Y:150 Z:70 X:110 Y:150 Z:70
Traverse speed (mm/sec) 250 250
Controller G2/G4 (controller) G2/G4 (controller)
Power voltage (v) Single AC200-230V , 50Hz/60Hz Single AC200 - 230V , 50Hz/60Hz
Power comsumption (w) 1100 1500
Air pressure (Mpa) 0.49-0.59 0.49 - 0.59
Machine size (W × D × H / mm) 600(W) *1100(D) * 1300(H) 770 × 1100 × 1300
Machine weight (kg) 350 400

Specifications : MX 5600 Series

Type MX5600
MX5604 MX5606 MX5608 MX5612 MX5616
Spindle number
4 6 8 12 16
Spindle speed (rpm) 4000 / 10000 / 16000 4000 / 10000 / 16000 / 25000 *
Spindle pitch (mm)
140 90
70 456 35
Spindle servo moto power (w) 1500 (3000*)
Traverse motor power (w) X:200 Y:200 Z:200
Spindle diameter (mm) 10 (12*)
Wire range (mm) 0.02 - 0.32 (>0.32*)
Max. Bobbin diameter (mm)
125 75 55 30 20
Traverse moving range (mm) X:110 Y:150 Z:70
Traverse speed (mm/sec) 250
Controller G2/G4 (controller)
Power voltage (v) Single AC200 - 230V , 50Hz/60Hz
Power comsumption (w) 2300
Air pressure (Mpa) 0.49 - 0.59
Machine size (W × D × H / mm) 973 × 1106 × 1307
Machine weight (kg) 600

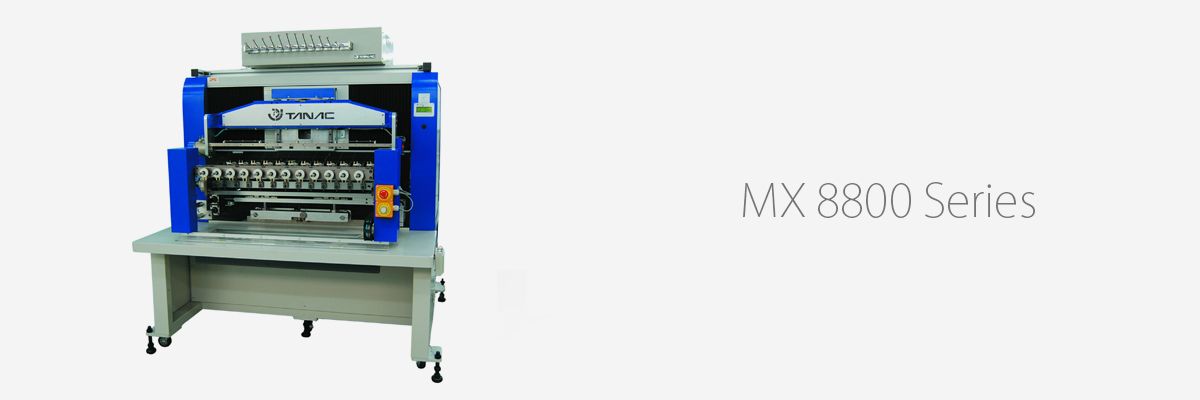

Specifications : MX8800 Series

Type MX8800
MX8808 MX8812 MX8816
Spindle number
8 12 16
Spindle speed (rpm) 4000 / 10000 / 16000
Spindle pitch (mm)
110 72 55
Spindle servo moto power (w) 3000
Traverse motor power (w) X:400 Y:400 Z:400
Spindle diameter (mm) 10 (12*)
Wire range (mm) 0.02 - 0.32 (>0.32*)
Max. Bobbin diameter (mm)
95 57 40
Traverse moving range (mm) X:110 Y:150 Z:70
Traverse speed (mm/sec) 250
Controller G2/G4 (controller)
Power voltage (v) Single AC200 - 230V , 50Hz/60Hz
Power comsumption (w) 4000
Air pressure (Mpa) 0.49 - 0.59
Machine size (W × D × H / mm) 1473 × 1462 × 1538
Machine weight (kg) 850

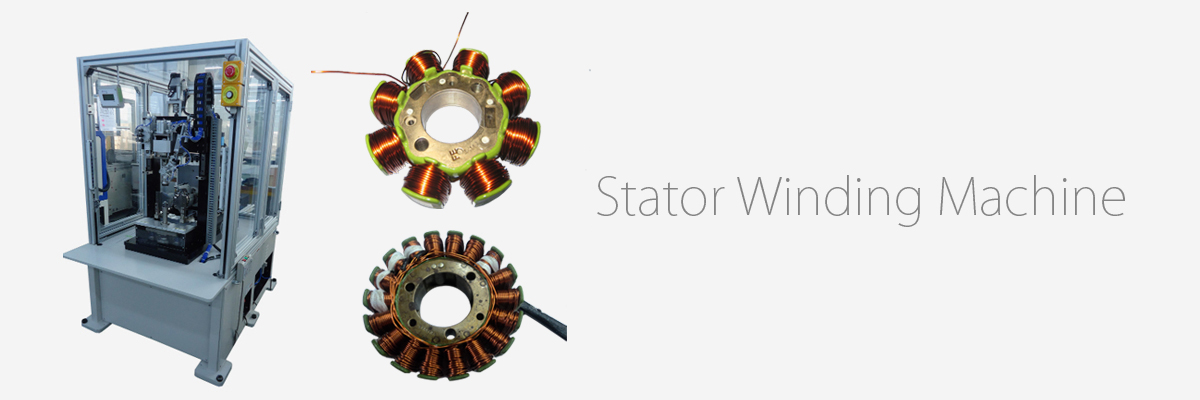

MDC 03 – Multi pole Stator Winding Machine

Single spindle flyer-type winding head.

AC servo motor for Flyer, Core index, traverse & jig.

All key parts imported from Japan.

Servo controlled Former (finger) movement on Jigs for precise & controlled opening of fingers for every layer of winding resulting in precise & accurate winding.

Automatic tap puller with wire clamp and cutter for automatic tap pulling and end termination.

Electronic / servo wire tension programmable for different stages of winding.

Balanced Design provides Compact Structure, High rigidity, High Precision, High Speed & High Intensity.

High performance G2 controller with multi-program memory and PC Interface. Windows based GUI; (programming thru External PC), different Security IDs for programming & operating modes.

Tanac’s original software, easy to use & easy to operate, provides simple programming steps for very intricate winding parameters. Complex windings.

Specifications

SL No. Description Specification
1 Number of Spindles 1
2 Spindle Speed (rpm) 1500 rpm/MAX
3 Wire Size Dia. 0.2mm-2.0mm
4 Spindle Motor 1500W AC Servo Motor
5 Core Diameter 130 mm MAX
6 Core Height 60 mm
7 Traverse Stroke 90 mm
8 Traverse Speed MAX 250mm/sec
9 Traverse Motor 200W AC Servo Motor
10 Former Open/Close 100W AC Servo Motor
11 Core Index 750W AC Servo Motor
12 Core Indexing Speed MAX125mm/sec
13 Core Clamping Pneumatic Tailstock (top)
14 Tap Pulling & Wire Cutting Pneumatic cutter
15 Controller TANAKA G2 / G4 Controller
16 Machine Dimension 900mm x 1200mm x 1700mm(H)
17 Machine Weight 650 Kgs
18 Power Consumption 3000 w
19 Power Supply Single Phase 220-240v 50hz

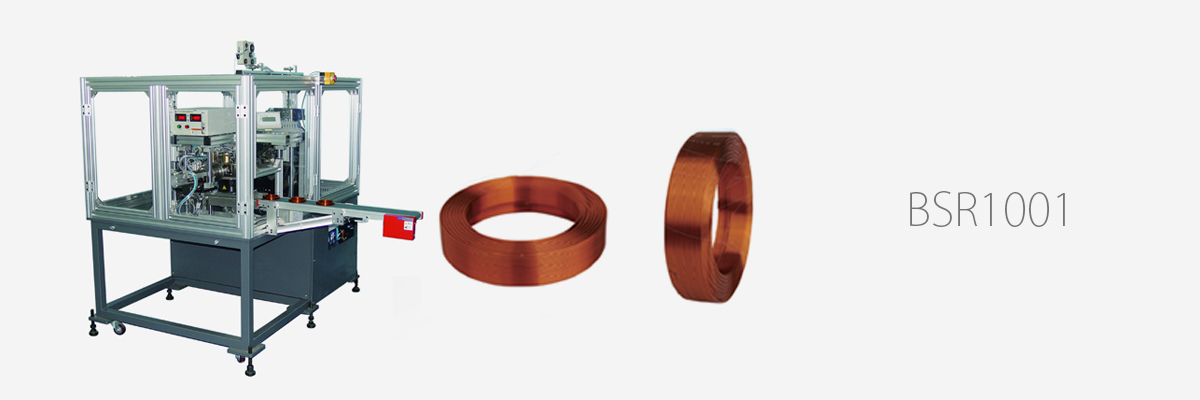

Multi Station Resistance bonding type Bobbin less type Winding Machine

This Machine is air core (bobbinless) coil winding. At the centre of the machine there is large rotary table, on which there is a station every 90 degree with a set of fixture.

The 1st Station is automatic winding, as the wire is thick, we use pneumatic scissor to cut the end leads. Width of the winding is changed by programming. In order to keep the winding with perfect layer, the winding width moves simultaneously with the traverse at the first layer.

The 2nd station is coil bonding, Self bonding copper wire will be bonded by electrical heating (resistance method) & be pressed firmly in order not to loosen (unwind).

The 3rd Station is unloading, the coils will be unloaded from the jigs & placed on conveyor Fan is provided for cooling off the coils.

4th Station is spare station.

Simple design, easier to operate & easy maintenance.

TANAC original controller can be connected to windows standard interface, which is extremely easier to operate.

Type BSR
Model BSR1001
Spindle Number 1 spindle x 4 station
Spindle Speed (rpm) 5000
Spindle Servo Motor 400 W
Wire Range 0.6 mm – 1.2 mm
Max Coil Outer diameter 100 mm
Controller G2/G4 controller
Input Power 1P, 220V – 230V , 50/60 Hz
Power consumption 2500 W
Air supply 0.49 – 0.50 Mpa
Dimension 1100 x 1600 x 1540 mm
Weight 600 Kgs

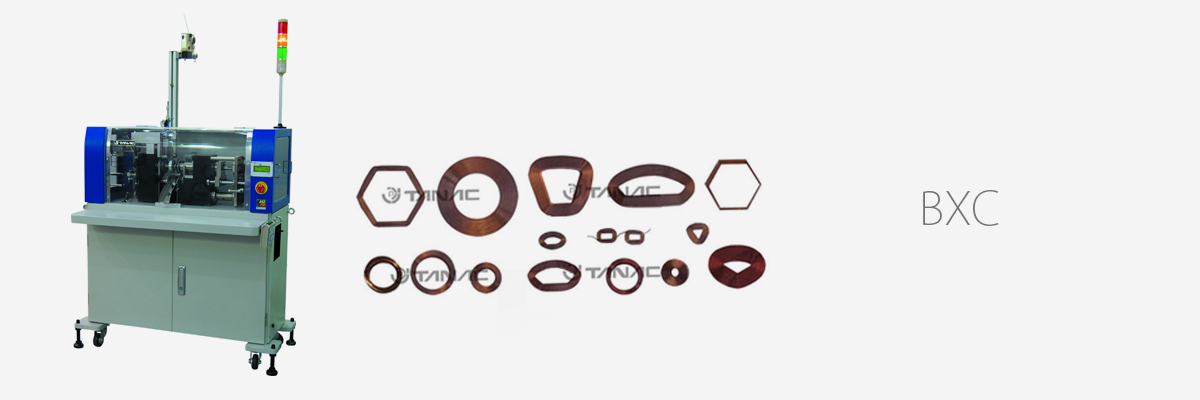

Single Station hot air bonding type Bobbin less type Winding Machine

BX series is Air-cored winding machine of Tanac with high rigidity, precision and durability.

Machine Features

The rigidity of BX series is better and the moving scope of XYZ axis is larger than the previous one. This series can complete more complicated wound coils with high-speed and high precision, what's more lifetime is prolonged.

With the adoption of Tanac's original special software for winding machines, various kinds of winding with high difficulties can be realized. With Windows programming, the operation is extremely easy, even for people who have never used Tanac software before.

Type BX06
Spindle number 1
Glueing method Hot welding (Alcohol Bonding)
Wire range (mm) 002 - 0.3
Spindle drive 2 spindle synchronous motor
spindle speed (rpm) Max. 5000
Stop precision ±0°
Coil outer max. dia. (mm) 20 (50*)
Coil inner min. dia. (mm) 1
Lead wire position Optional
Length of leading wire (mm) 35 - 50
Max. coil width (mm) 20 (30*)
Setting precision (mm) 0.001
Width setting Servo Controllor
Wire cutting Pull Cut
Spindle motor (W) AC Servo Motor 400W
Traverse motor (W) AC Servo Motor 100W
Power voltage(V) Single 210 - 230V / 50Hz
Power consumption (W) 1700
Air pressure (Mpa) 0.49 - 0.59
Machine size (mm) 1115(W) *520(D) * 1195(H)
Machine weight (kg) 280

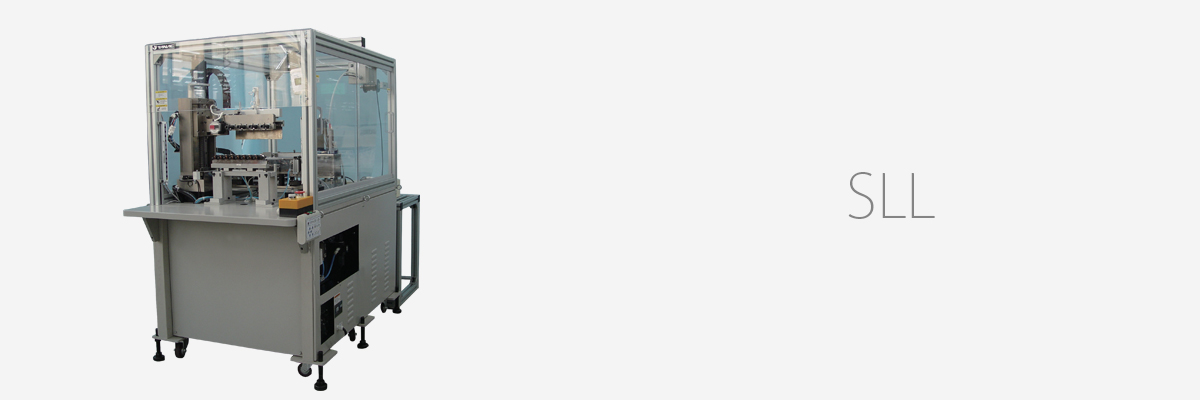

SLL – Linear Type Dip Soldering Machine

Linear soldering machine that can finish pre-fluxing and tin submerging automatically can be combined into automatic production line.

Machine Features

Simple in design, easier to operate, less failure, and easy maintenance. Also, it is featured with high rigidity, high precision, high speed, long service life.

TANAC original controller can be connected to the Windows standard interface, which is extremely easy to operate.

The machine consists of four parts. Bobbin feeder, Flux container, Static solder bath, Titanium solder bath.

The standard process is bobbin feeding, fluxing soldering, ejecting.

This machine is suitable for high-difficulty soldering. Because jigs are mounted on YZ axis and liquid level in solder bath can be controlled by program. Also, it can do terminal soldering obliquely with rotatable jigs(optional).

There's one set of fixing jigs on each station. Several bobbins can be insert into the jigs according to the bobbin size, shortening the unit soldering time and improve efficiency.

Optional Accessories

According to the demands of different technological process, we provide a variety of optional devices. Electrical test equipment:

  • NG ejecting
  • Soldering feeding
  • Management over concentration of flux
  • Jig rotates vertically / Jig rotates horizontally

Specifications

Type SLL0008
Effective area of solder groove (mm) 80 × 300
Max. range for ascent & descent (mm) 0 ~ 155
Moving range from front to back (mm) 0 ~ 620
Rotation angle range (deg) 0 ~ 180
Power Consumption (W) 1500
Max. temperature of the soldering pot (℃) 520
Air pressure (Mpa) 0.49 ~ 0.59
Machine size (W × D × H / mm) 800 × 1500 × 1500
Machine weight (Kg) 1000

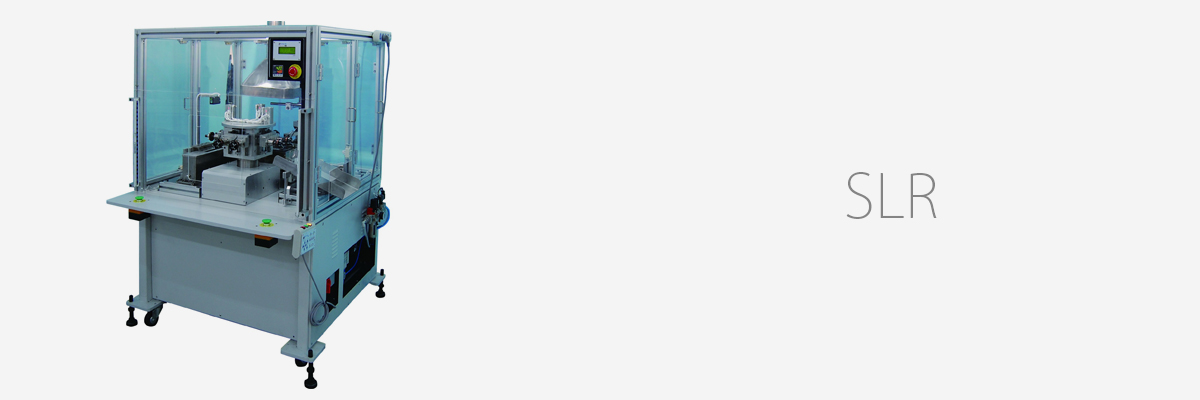

SLR – Rotary type Dip Soldering Machine

Rotary soldering machine is featured with a short cycle time and stable high-quality soldering. 4 models of rotary table with 4/6/8 stations are available and all can be used in conjunction with other optional device. Also, it can be combined into a production line.

Machine Features

Simple in design, easier to operate, less failure, and easy maintenance. Also, it is featured with high rigidity, high precision, high speed, long service life.

TANAC original controller can be connected to the Windows standard interface, which is extremely easy to operate.

It has following standard units: fluxing feeding, small solder bath moves up and down to dip tin, and its liquid level determines the solder bath's, titanium solder bath.

Due to the rotary table, all the stations can work simultaneously, greatly shorten the soldering time of per coil.

Due to the rotary table, all the stations can work simultaneously, greatly shorten the soldering time of per coil.

Each station of rotary table has several fixed jigs, and the number is depended on the size of each coil as the solder bath size is fixed.

Optional Accessories

Based on the requirements of products, the following units can be selected for assembly.

  • Loading unit
  • NG ejecting
  • Electrical test equipment (continuity test> resistance test)
  • Management over concentration of flux
  • Static soldering bath (it is for high precision soldering. It shall be used in conjunction with liquid level sensor and automatic solder feeding unit)
  • Automatic solder feeding unit (it adds solder strip according to liquid level feedback provided from sensor)
  • Bobbin rotates vertically (90°or 180°)
  • Bobbin rotates horizontally (90°)

Specifications

Type SLR
SLR0402 SLR0604
Stations
4 6
Spindle number
2 4
Effective area of solder groove (mm) 80 × 300
Max. range for ascent & descent (mm) 0 ~ 50
Power Consumption (W)
1500 2000
Max. temperature of the soldering pot (℃) 520
Air pressure (Mpa) 0.49 ~ 0.59
Machine size (W × D × H / mm)
1150 × 1000 × 1500 1500 × 1500 × 1500
Machine weight (kg)
200 300
